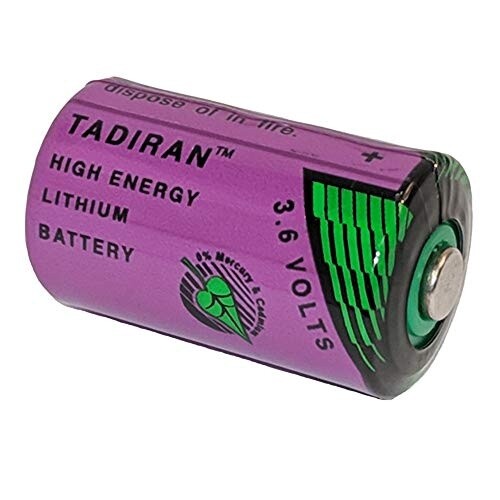

Tadiran 1/2 AA Lithium Battery

The TLL-5902/S is a 3.6V/1.1 Ah Non-Rechargeable (Primary) Battery, Lithium Thionyl Chloride (Li-SOCl2) 1/2AA.

Technical Data:
(Typical values @+25 ºC for batteries stored for one year or less)

• Nominal capacity @ 1 mA, to 2V 1.1 Ah
• Rated voltage 3.6 V
• Maximum recommended continuous current 50 mA
• Maximum pulse current capability 100 mA
• Weight 9.6 g (0.339 oz)
• Volume 4 cc
• Operating temperature range -55 ºC to +85 ºC
• Li metal content approx. 0.35 g
• U.L. Component Recognition, MH 12193

Features:

• Fast voltage recovery after long term storage and/or usage
• High energy density
• High and stable operating voltage
• Low self discharge rate
• Bobbin construction
• Hermetic glass-to-metal-sealing
• Non-flammable electrolyte
